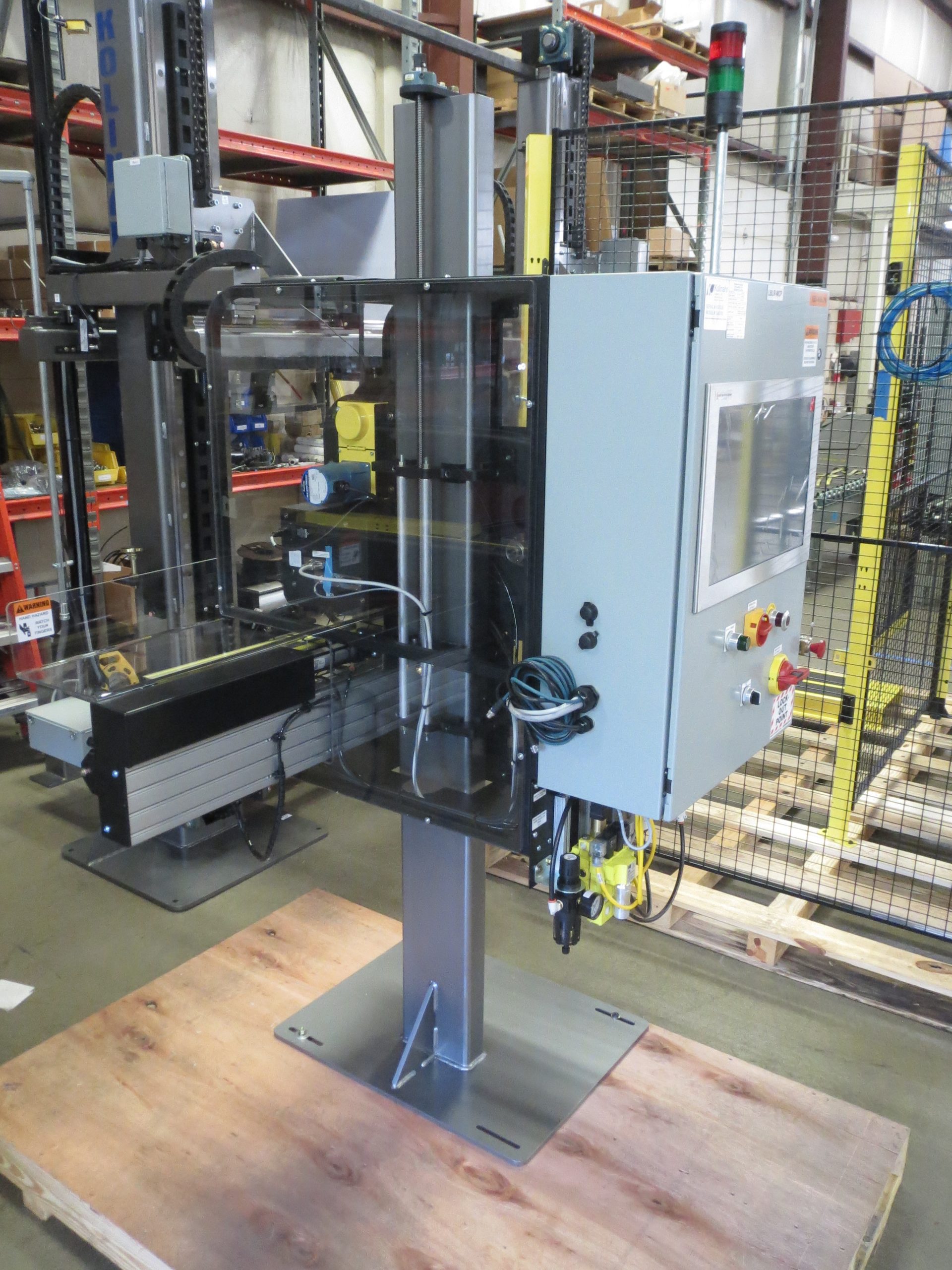

SA2100: TWO-SIDED PALLET LABEL APPLICATOR

general description

The SA2100 Two-Sided Pallet Label Applicator is designed to print and apply labels to the front and/or side of a pallet load. The machine is controlled by a PLC, which can communicate with the conveyor, stretch wrapper, and palletizer to ensure proper product handling during the labeling sequence. Full diagnostic reports and communication tracking are available, making troubleshooting easy.

labeling efficiency

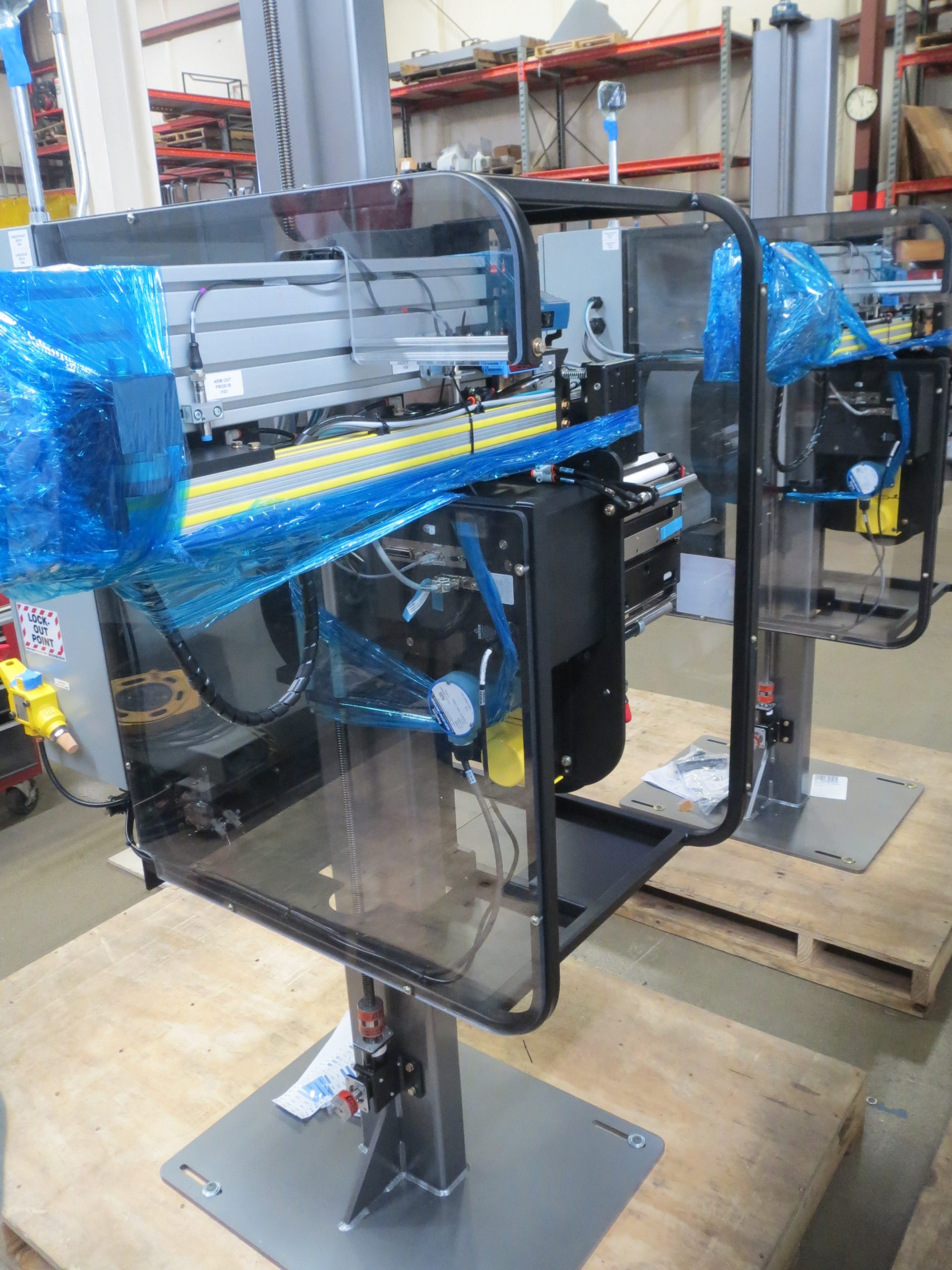

A rotating applicator arm takes a barcode label from a Zebra print engine, rotates out 90 degrees, and applies it to the leading edge of the pallet. The arm returns to accept a duplicate label from the printer. the second label is then wiped onto the side panel as the pallet load is staged past the labeler.

built to last

The rugged construction of the applicator arm and heavy-duty stand, the NEMA 12 UL listed industrial controls enclosure, and the other high quality commercial parts help ensure that the SA2100 will handle the rigors of 24/7 pallet load labeling.

Options

Our team works to create a solution to fulfill your facility’s packaging needs.  Therefore each machine is custom built for your application.  Here are a few added features our customers have opted to include, but if you don’t see what you need, please contact us to speak with an engineer.

      • Adjustable auto-height capability
      • Low label stock and ribbon sensors
      • Operator lock-out for printer maintenance
      • Separate control panel for installation outside of fencing
      • End of arm barcode scan and verification equipment
      • TrakSYS tracking software
      • And more…
