PLS200: PALLET LIFT SYSTEM

PLS200 Pallet Lift System

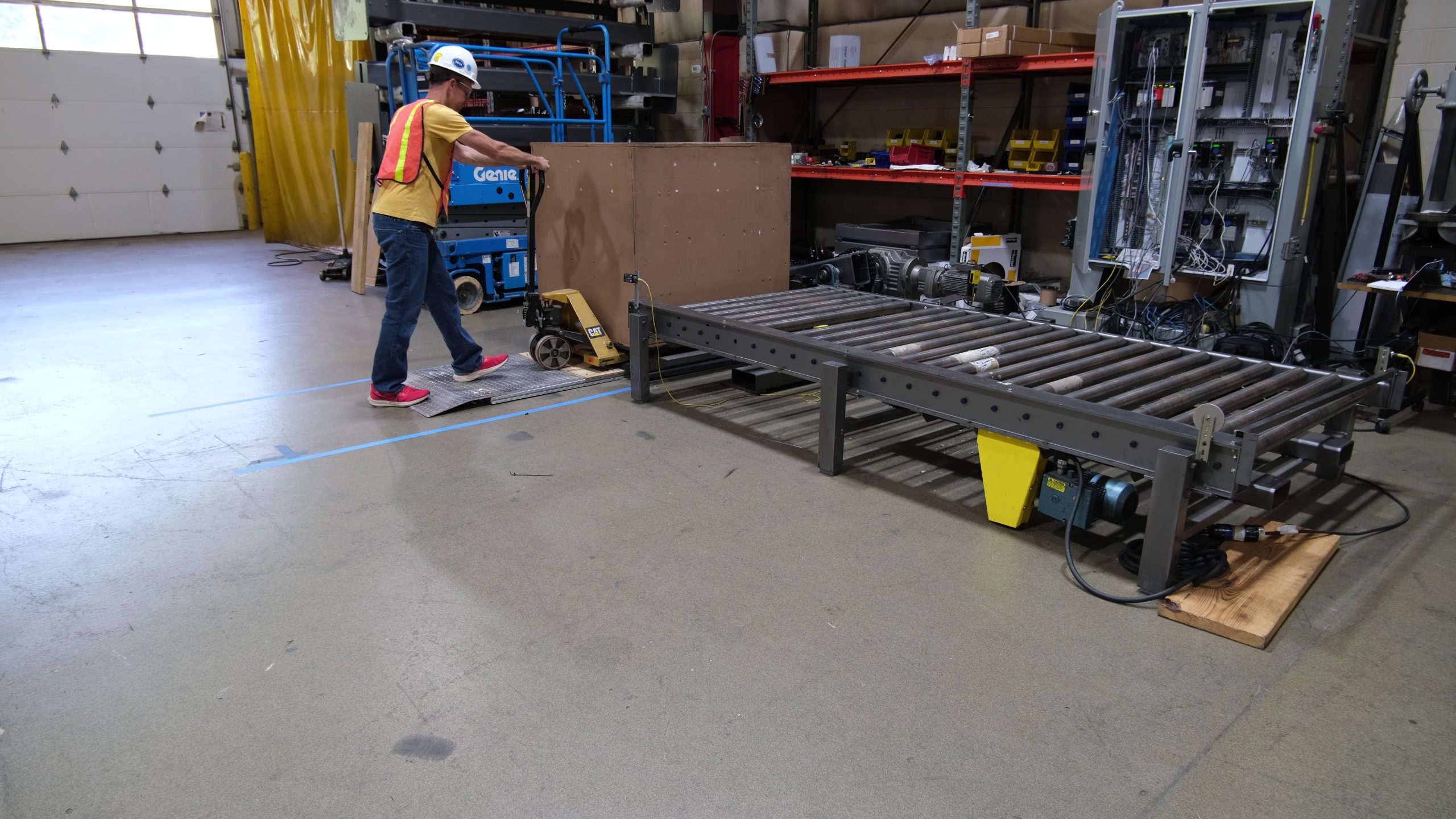

Loading product onto the PLS200 Pallet Lift System

a safer way to load pallets on conveyor

The PLS200 is a pallet lift system designed to take pallets from floor level to conveyor level (or from conveyor level to floor level).  The automation of this task helps to minimize damage to property, product, and people caused by fork trucks. Unlike other pallet lift designs on the market, this machine does not require a pit to be dug for installation, or messy hydraulics that need to be maintained.  The small footprint means it can be installed just about anywhere, and the perpendicular loading design puts your pallets in the optimal orientation for CDLR conveyor.

The pallet load is positioned with a hand truck or AGV onto the lifting forks with the use of a low ramp and guide rails.  Once the load is in position, the operator or AGV moves out of the way and hits a button to start the lifting process.  The load is then gently lifted and placed on the conveyor.

low fuss installation

The small foot print of this pallet lift system can be easily added on to the end of your existing conveyor section.  With the removal of a roller and a little modification to your conveyor programming this lift can be up and running in no time.  The all electric design eliminates the need for messy hydraulics, and is installed at floor level eliminating the need to dig a pit.

Additionally, maintenance is a breeze.  The components on the PLS200 are durable and lubed for life.  The wear components are easy to access so that replacements are quick and easy and you can be back up and running in no time.

Prioritize Safety

Whether you want a simple set up with fencing and a door, or a more advanced system with light curtains and load sensors, our team can help you design a safety enclosure to fit your facility’s needs.

options

Our team works to create a solution to fulfill your facility’s packaging needs.  Therefore, each machine is custom built for your application.  Here are a few added features our customers have opted to include, but if you don’t see what you need, please contact us to speak with an engineer.

        • Auto-adjusting lifting feet for multiple pallet sizes
        • Extra-wide conveyor
        • Heavy loads
        • Custom paint color
        • And more…
